CCP-ER-1+

CCP-ER-1+ Lithium‑Ion Brushless Cordless Rivet Tool Ø6.4~ Ø2.4

#Cordless Rivet Gun #

Made in Taiwan

Level: Industrial grade

Scope of application: Construction worker industrial products for demanding long hours of work required, contractors, car ship machinery and other heavy-duty performance and durability needs.

Primary Competitive Advantages:
High reliability and durable products, accept customer badges, accept small orders, accept ODM, accept OEM

Print Added to Inquiry

Product Specifications/Features:

Features:

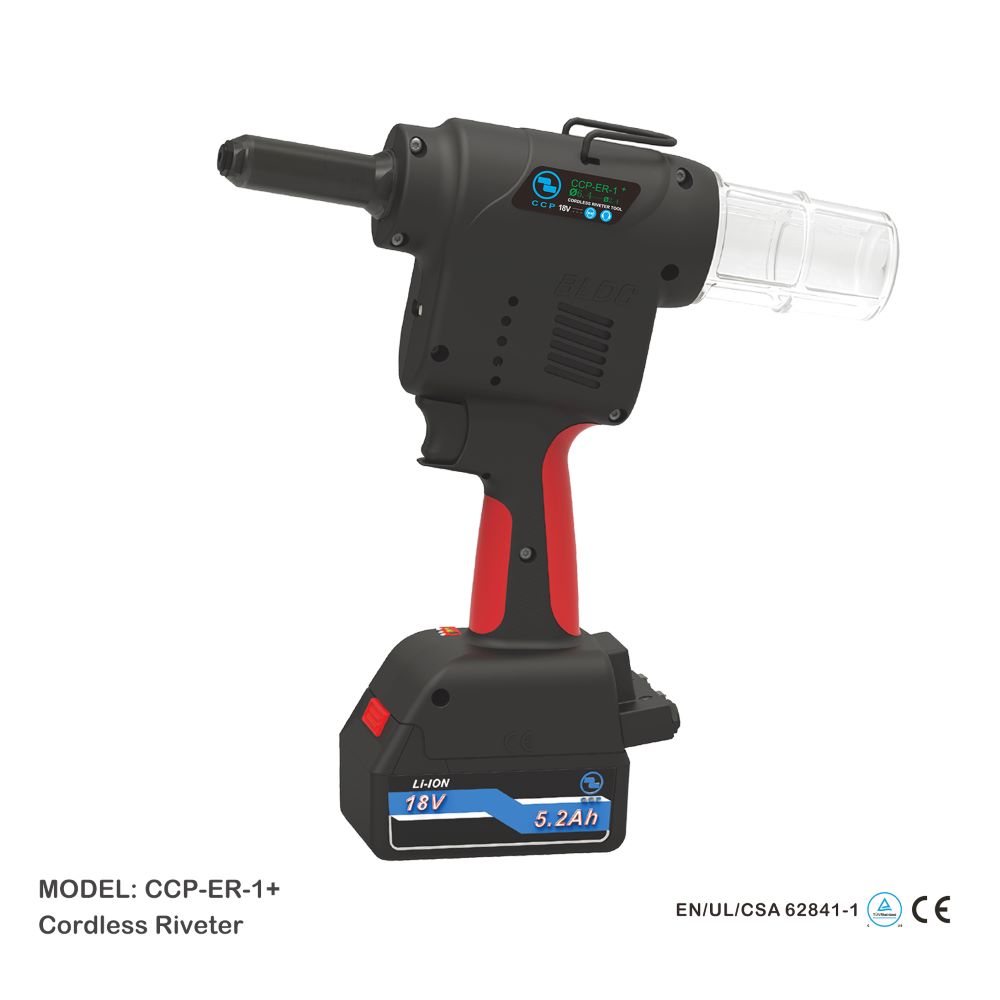

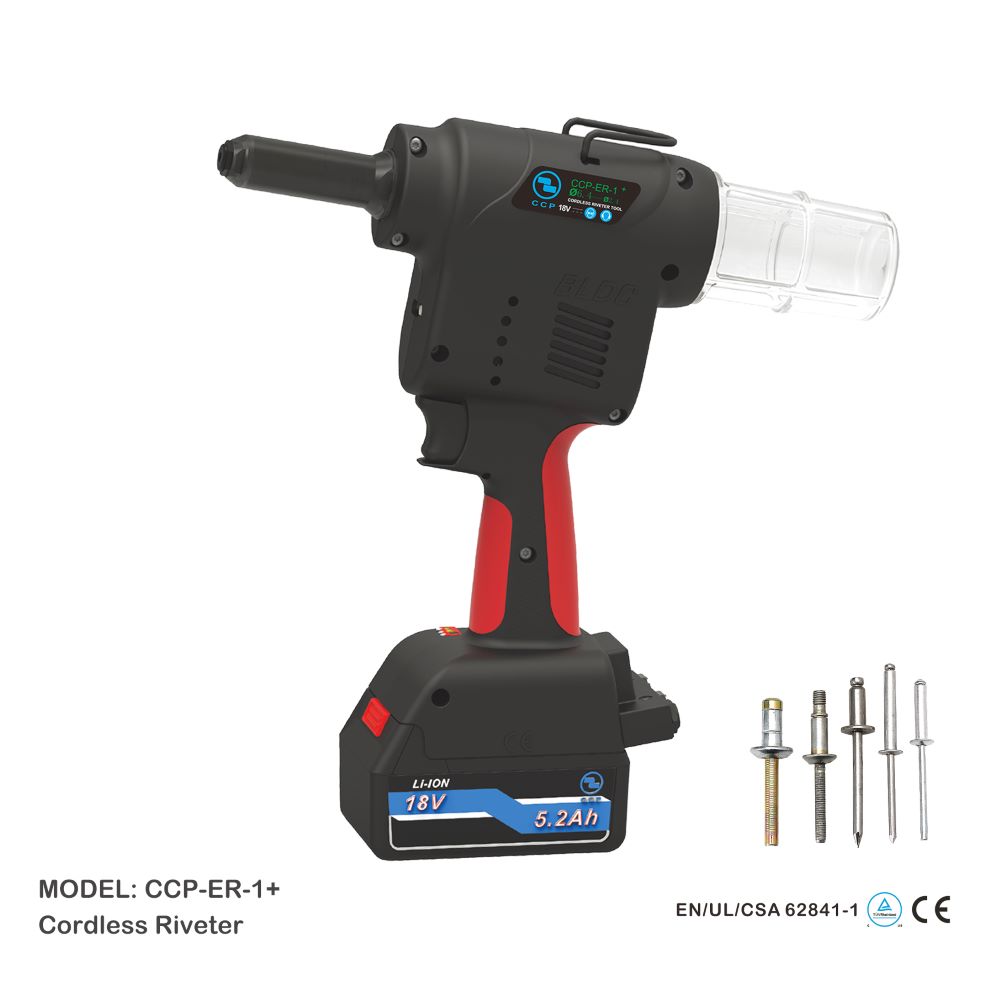

CCP-ER-1+ Cordless Rivet Gun, available rivet (full size)Ø6.4~ Ø2.4 all materials/Power:23000N .
Designed with high-efficiency brushless DC motor.

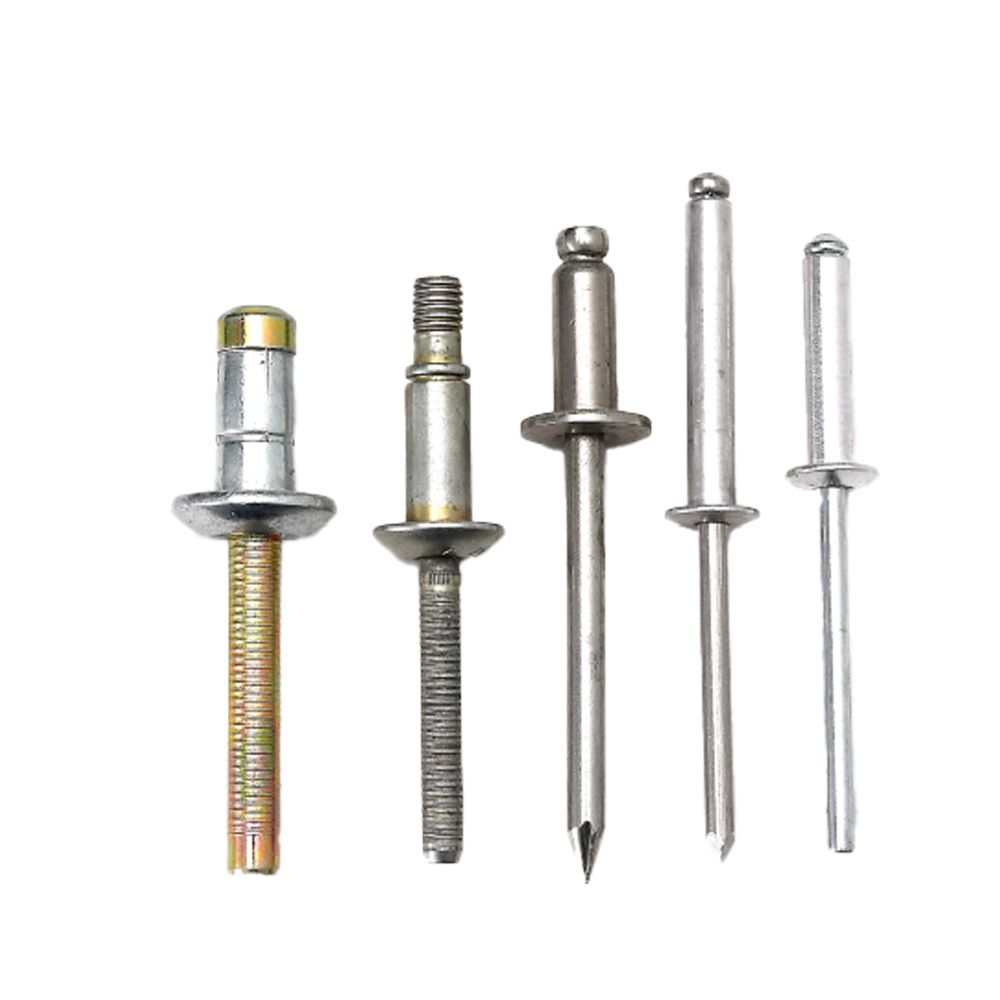

Capable of pulling aluminum, steel, and stainless steel rivets.
CCP-ER-1+ tests Ø6.4(1/4")x14mm(STRUCTURAL)(as Magna-Lok® MGLP-R8-E Interlock Blind Rivet) 30,000 put Ø6.4 structural rivets, the function is normal, no need to replace any parts.
Fast riveting time 2.2 seconds per cycle.
Approved 7 U.S. patent applications.
High performance 2.6A battery runtime: pulling 750 STRUCTURAL rivets-6.4mm.
Quality Approval Certificate: The whole set has passed the German Rheinland 62841 TUV certification, European TUV certification, American 62841 certification and EMC.

Specification:

Drive : Brushless DC
Riveting Capacity : for setting standard rivets Ø2.4 ~ Ø6.4 mm ( 1/4 inch) in all materials. (max. mandrel diameter 4.5mm)
Stroke: 25 mm (0.98 inch)
Pulling force: 5000lbf±5%
Nosepieces: 3/16, 7/32, 1/4 inch (4.8, 5.6, 6.4 mm)

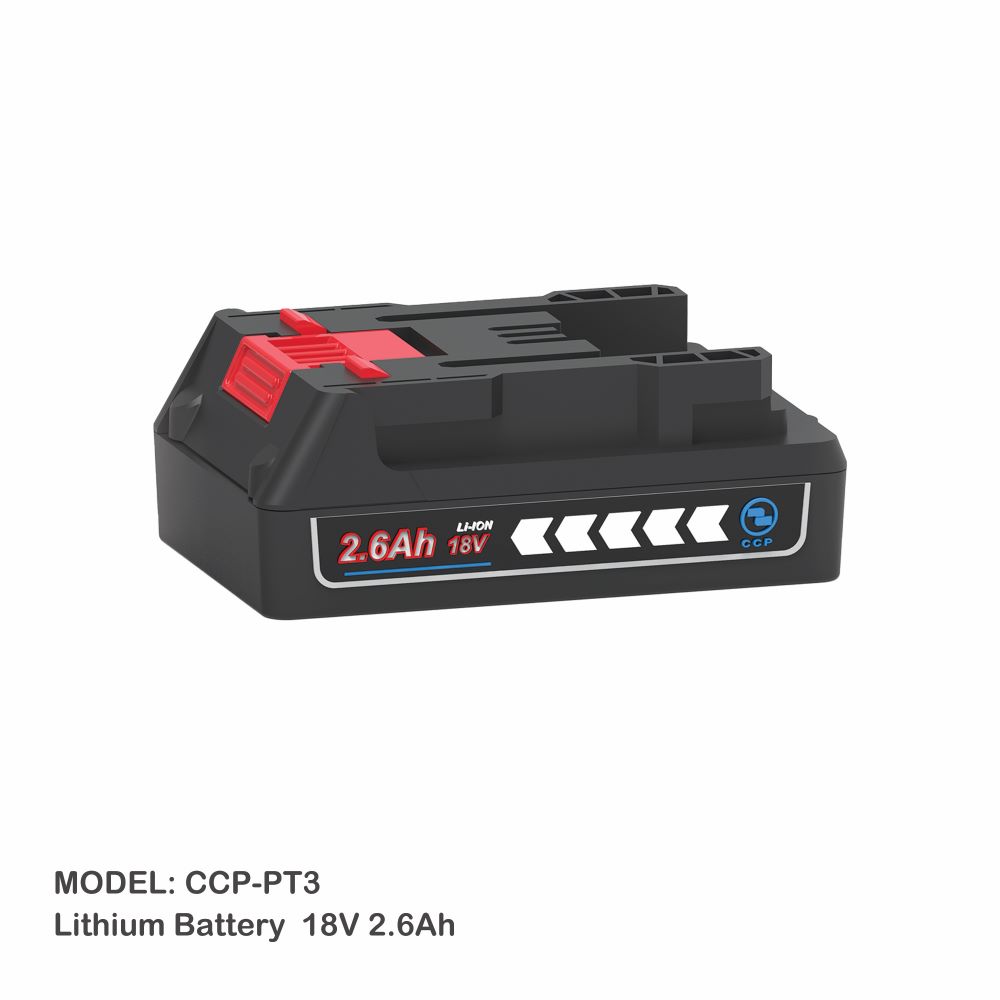

Applicable battery model : CCP-PT3 (18V 2.6Ah) , CCP-PT4 (18V 5.2Ah)
Tool Weight: 1.6 kg (Without Battery)
Height: 306.2 mm
Length of Placing Head: 307.3 mm
Base Diameter: 70.5 mm
Safety/Quality Approvals: ISO9001; cTUVus, CE , UN38.3 , PSE...etc
Sales Method: Export, Manufacture, OEM/ODM
