Product Specifications/Features:

Features:

• CCP-ER3 Cordless Lockbolt Rivet Gun,  The battery design of the Japanese international manufacturer's battery core allows the tool to have maximum matching and high stability.
• High-efficiency brushless DC motor drive.
• Products and batteries have multi-country safety inspection and certification.
• Transparent mandrel collection container for easy viewing of container level.

Specifications:

• Drive : Brushless DC
• Stroke: 25 mm (0.98 inch)
• Pulling force: 5000 lbs (22241N)

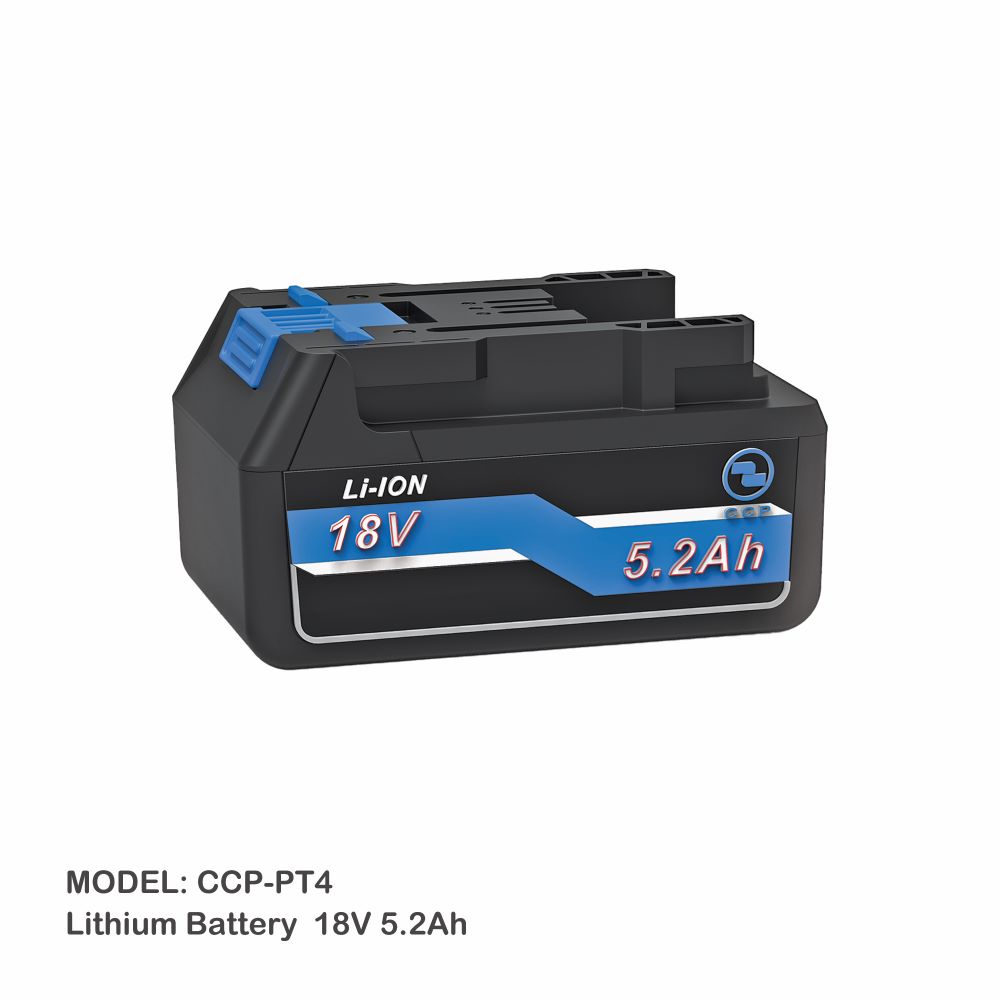

• Applicable battery model : CCP-PT4 (18V 5.2AH) Li-lon

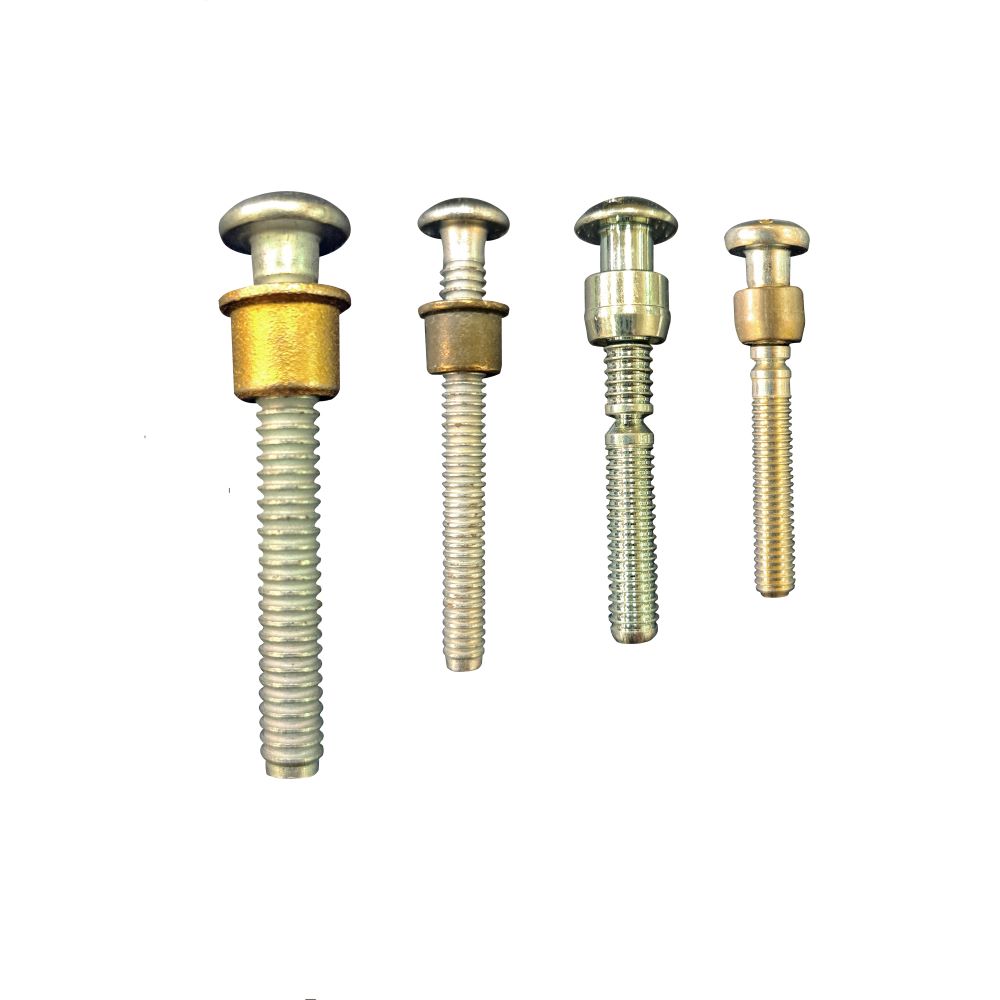

• Riveting Capacity:

           Magan-Lok: 4.8mm(3/16")~6.4mm(1/4")
           Magan-Bulb: 4.8mm(3/16")~6.4mm(1/4")
           Magan-Grip: 4.8mm(3/16")~6.4mm(1/4")
           C6L: 4.8mm(3/16")~6.4mm(1/4")


• Tool Weight: 1.69 kg  (Without Battery)
• Height: 324.9 mm
• Length of Placing Head: 358.7 mm
• Base Diameter: 70.5 mm
• Safety/Quality Approvals: ISO9001; cTUVus, CE , UN38.3 , PSE...etc
• Sales Method: Export, Manufacture, OEM/ODM
