CCP-ER-1 Lithium‑Ion Brushless Cordless Rivet Tool Ø6.4~ Ø3.2

Home » Cordless Power Tools » Blind Rivets Battery Tools & Lockbolt Tools » CCP-ER-1 Lithium‑Ion Brushless Cordless Rivet Tool Ø6.4~ Ø3.2

CCP-ER-1

CCP-ER-1 Lithium‑Ion Brushless Cordless Rivet Tool Ø6.4~ Ø3.2

#Cordless blind rivet gun LI-lon #Battery powered riveting tool #power tools #battery tools.

Made in Taiwan

Level: Industrial grade

Scope of application: Construction worker industrial products for demanding long hours of work required, contractors, car ship machinery and other heavy-duty performance and durability needs.

Primary Competitive Advantages:
High reliability and durable products, accept customer badges, accept small orders, accept ODM, accept OEM

Print Added to Inquiry

Product Specifications/Features:

Features:

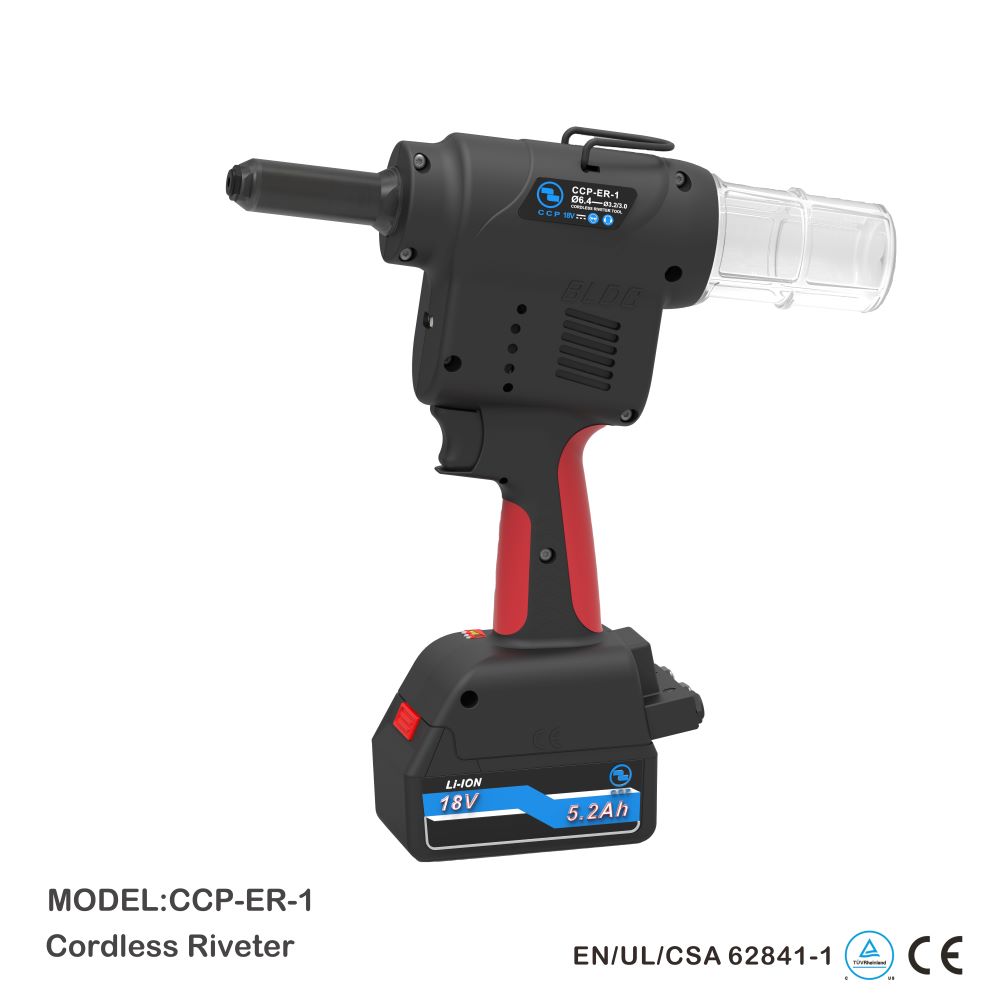

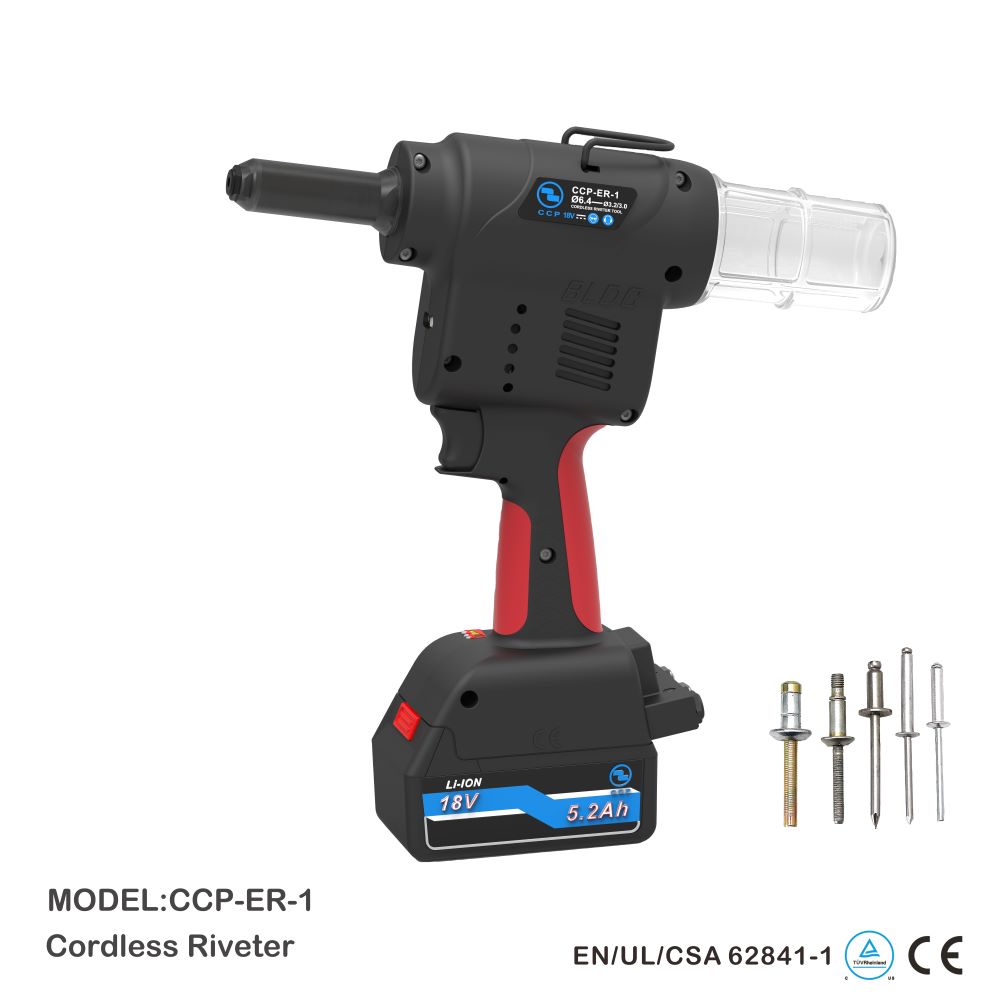

CCP-ER-1 lithium battery rivet gun 1/4", uses standard rivets of all materials Ø3.2 ~ Ø6.4 mm (1/4 inch)
CCP-ER-1 tests Ø6.4(1/4")x14mm(STRUCTURAL)(as Magna-Lok® MGLP-R8-E Interlock Blind Rivet) 30,000 Ø6.4 structural rivets, the function is normal, no need to replace any parts.
Design using efficient Brushless Motor product is light and durable.
Fast riveting improves efficiency: /CCP-ER-1 with a 2.2 second cycle time.
The product has been verified by multinational safety regulations and passed 7 U.S. patents.
High performance 2.6A battery runtime: pulling 750 STRUCTURAL rivets-6.4mm.
Quality Approval Certificate: The whole set has passed the German Rheinland 62841 TUV certification, European TUV certification, American 62841 certification and EMC.

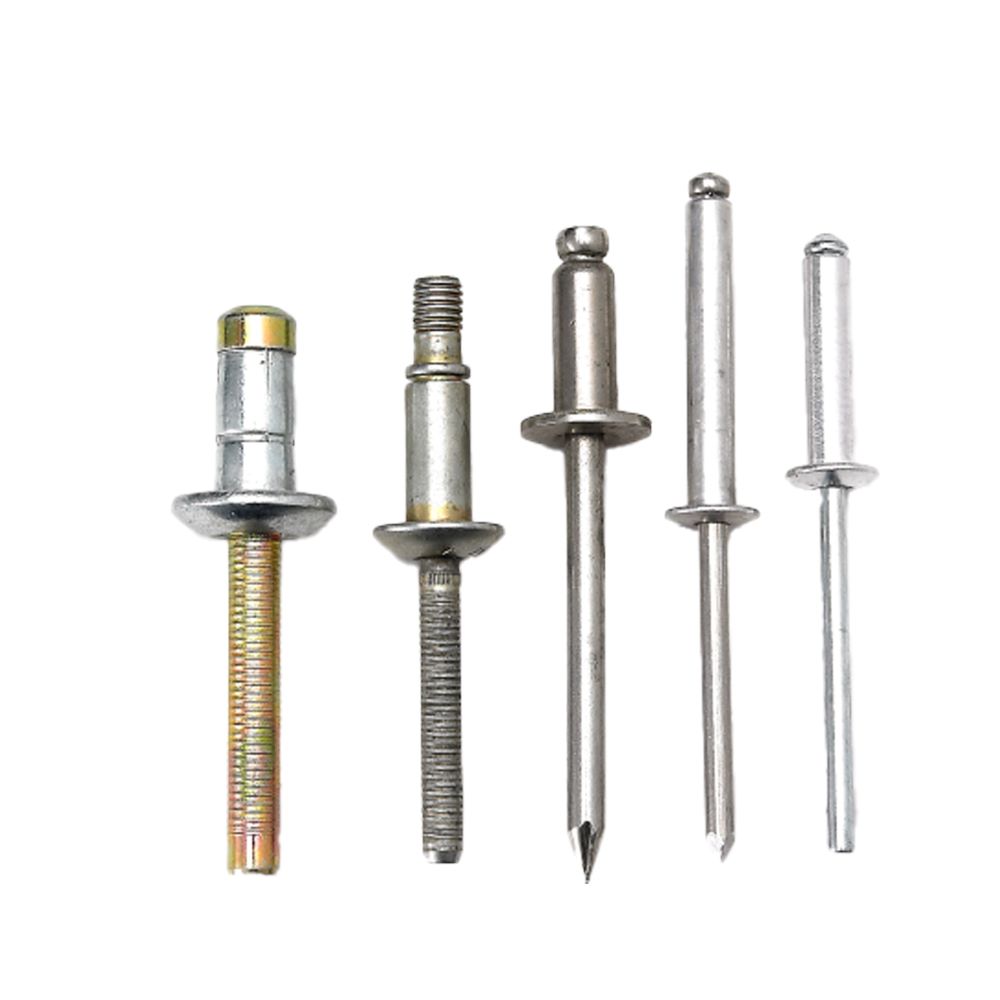

Capable of pulling aluminum, steel, and stainless steel rivets.

Specification:

Drive : Brushless DC
Riveting Capacity : for setting standard rivets Ø3.2 ~ Ø6.4 mm ( 1/4 inch) in all materials. (max.mandrel diameter 4.5mm)
Stroke: 25 mm (0.98 inch)
Pulling force: 5000lbf±5%
Nosepieces: 3/16, 7/32, 1/4 inch (4.8, 5.6, 6.4 mm)
Applicable battery model :

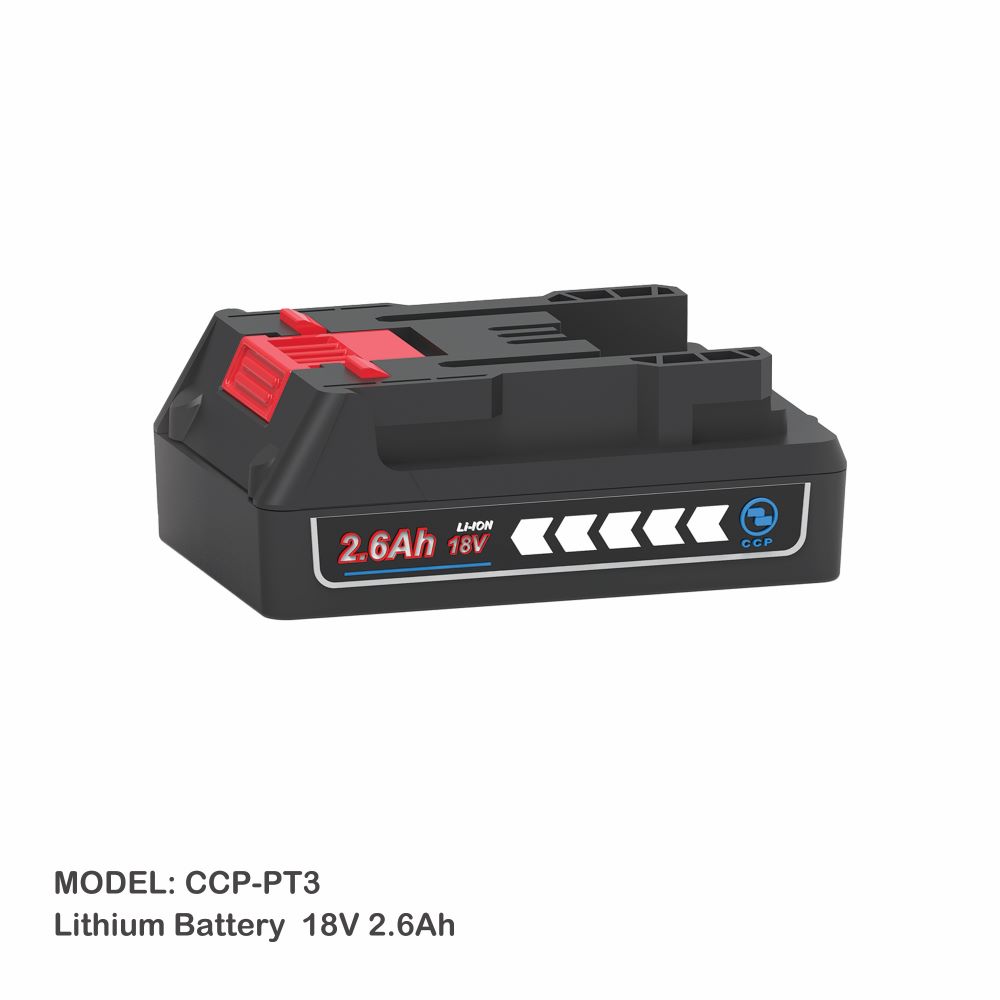

CCP-PT3 (18V 2.6AH)

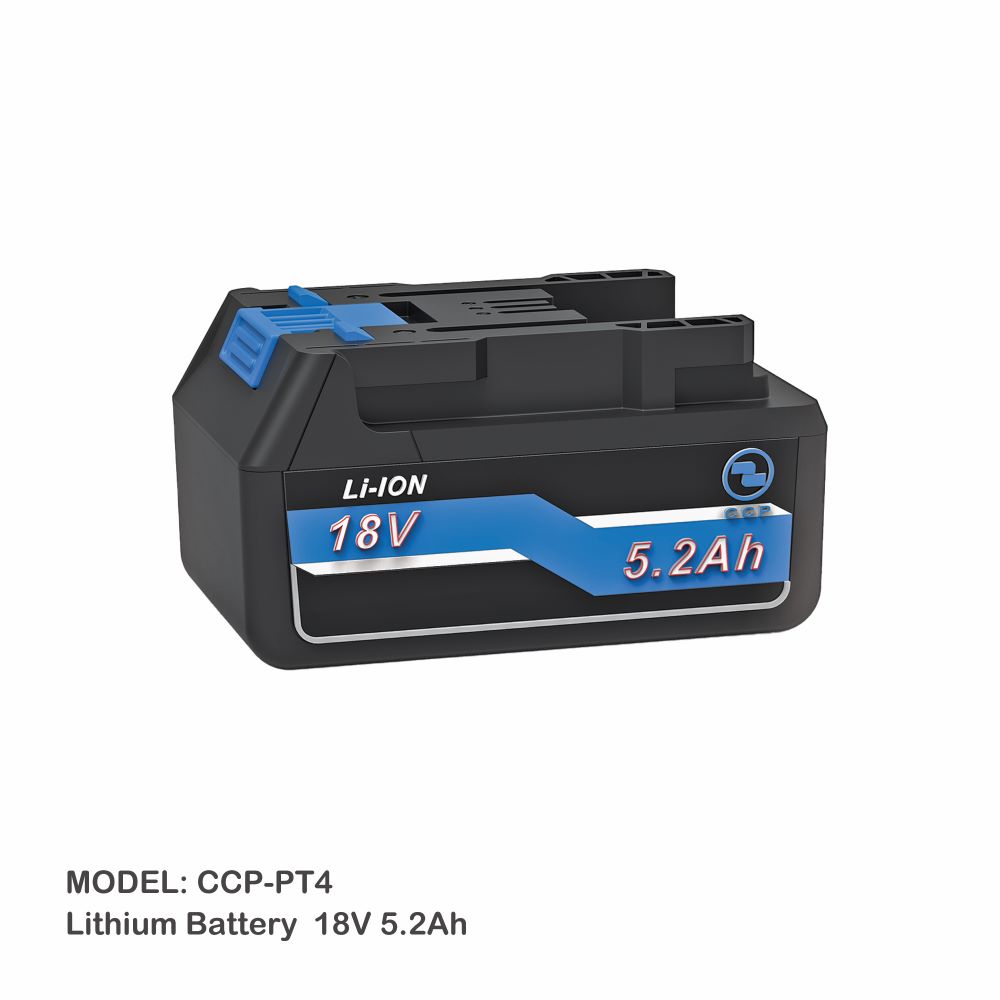

CCP-PT4 (18V 5.2AH)
