CCP-240A Air Hydraulic Riveter Tools -3/16 inch ;CC-240A

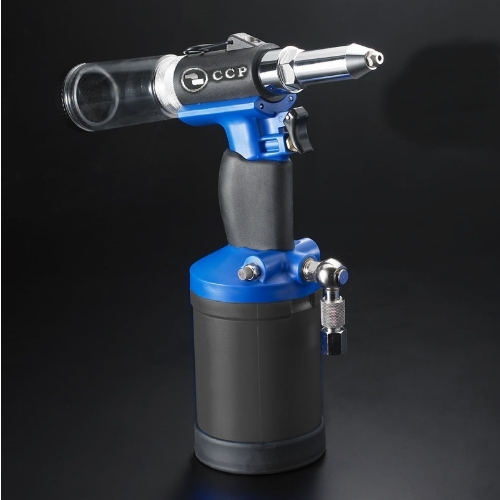

Air Hydraulic Riveter Tools -3/16 inch ;CC-240A

Made in Taiwan

Level: Professional

Scope of application: Automobiles & Motorcycles, construction, machine tools, machinery, repairs, and fastening tools with various fasteners, screws, rivets.

Primary Competitive Advantages:
Professional level and durable products, accept customer badges, accept small orders, accept ODM, accept OEM.

Product Specifications/Features:
  • This tough and flexible hydraulic riveting machine is suitable for general applications such as chassis assembly, vehicle maintenance.
  • Lightweight and ergonomically designed easy operation and maintenance.
  • Vacuum system with an integrated design.  Manual air adjuster for vacuum and air consumption control.
  • Its ergonomic design and reinforced structure make the CCP tool easy to use yet tough enough to endure any assembly line.
  • Brand-new technology, have low recoil of shock-less, can reduce part of tools wear,  and the can reduce operator is tired.
  • Integrated vacuum system for mandrel retention andcollection.
  • Work Capacity: for setting standard rivets  2.4 ~ 4.8 mm (3/32 ~ 3/16 inch) in all materials
  • Stroke: 19.5 mm (0.768 inch)
  • Working Air Pressure: 85 ~ 90PSI (6 ~ 6.3 kg/cm2)
  • Traction Power: 2400 lbs (10675 n)
  • Nosepieces: 3/16, 5/32, 1/8, 3/32 inch (4.8, 4.0, 3.2, 2.4 mm)
  • Auto Vacuum Mandrel Collection System: Yes
  • Tool Weight: 1.87 kg
  • Height: 301 mm
  • Length of Placing Head: 290 mm
  • Base Diameter: 88.6 mm​
  • Safety/Quality Approvals: ISO9001,CE
  • Sales Method: Export, Manufacture, OEM/ODM
